Maximum capacity. Maximum protection. The largest model in the Green Drain line. Flow rates exceeding 550 L/min. Drop-in install, no tools required.
Free shipping on all orders

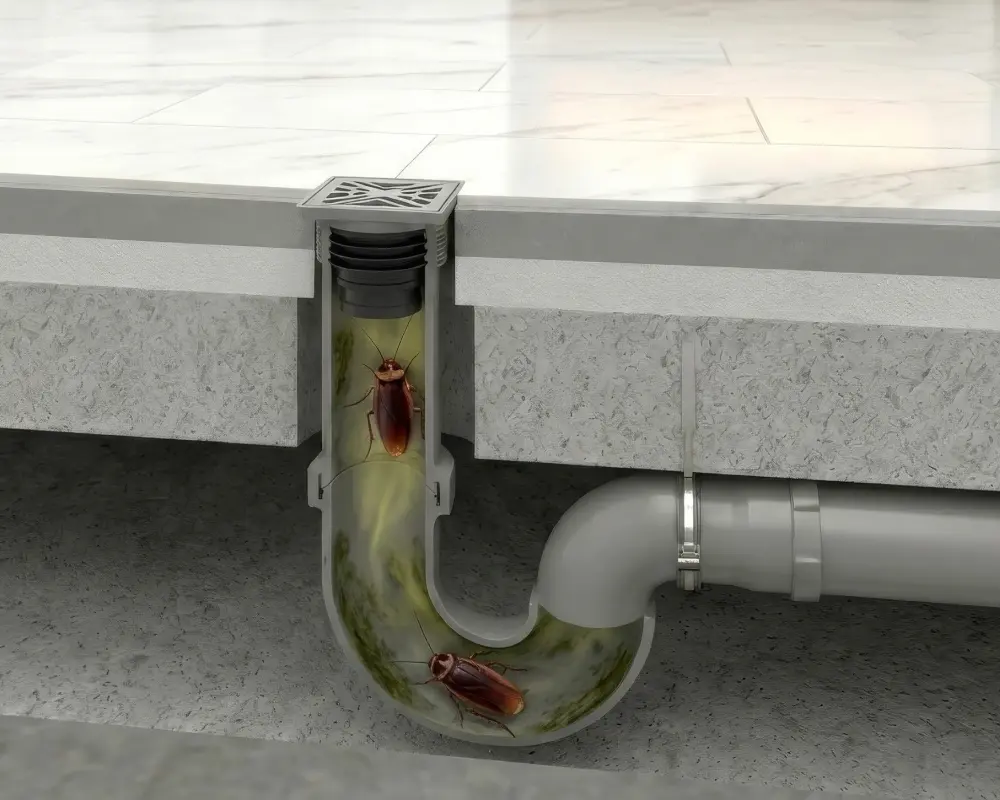

Four flexible silicone sealing ribs form a one-way valve. High-volume flows pass through under gravity. The GD6 handles over 550 L/min without restriction.
When flow stops, the ribs close to create a continuous mechanical seal that blocks sewer gas, odors, and pests from entering the occupied space above.
The same one-way valve principle that works at 1.25" scales to 6" with proportionally increased flow capacity.
The GD6 is the largest waterless trap seal in the product line. Independently tested and certified.
| Model | GD6 |
| Pipe Size | 6" (150-156 mm) / DN150 |
| Height | 51 mm |
| Housing Diameter (no gasket) | 150.2 mm (5.400"), bottom 144.2 mm (5.677") |
| Housing with Gasket | 159 mm (6.260") wide x 50.8 mm (1.462") |
| Housing Material | ABS Plastic |
| Valve Material | Silicone Rubber |
| Seal Material | Silicone Gasket |
| Flow Rate (Level C) | 141.3 GPM |
| Flow Rate (Level U) | ≥550 L/min |
| Patents | US 7,900,288 · US 9,027,172 |
Lift the existing drain grate or strainer from the floor drain body.

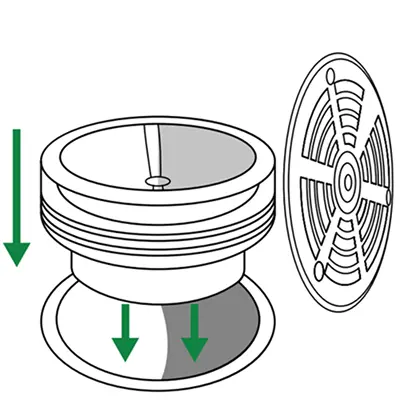

Place the Green Drain into the drain body or hub opening.

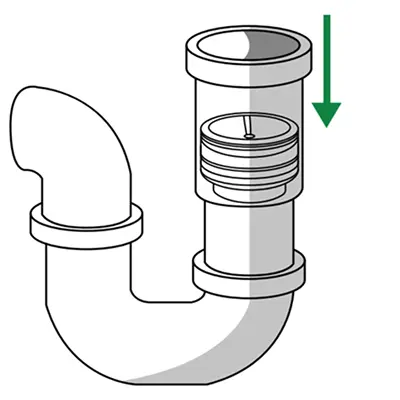

The silicone gasket creates a snug seal against the pipe walls.

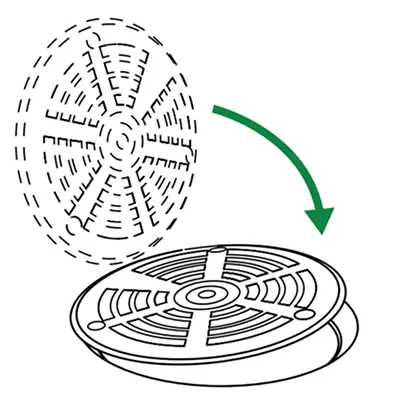

Put the grate back. Done. Full coverage for your largest drains.
Handy accessories for Green Drain owners.
Purpose-built for quick, clean removal of any Green Drain. Simply hook and lift.
$6.95
Identify drain sizes in the field. Measure the inside diameter to find the right model.
$6.95
The 6" floor drain is found in heavy industrial and high-capacity drainage applications. The GD6 delivers maximum-capacity protection for the largest pipe sizes.
IAPMO File 9301
Trap seal performance standard
European Technical Assessment
Food Equipment Certified
Certificate RG-04
WM-022837 (DN80)
California Material Safety
>99.9% blockage of viral aerosols
Rapport 957187
Certified Testing Lab
Danish Plumbing Approval
Drop-in install. No tools. Works from day one.
