The backbone of residential plumbing. Showers, laundry rooms, basement floor drains. Drop-in install, no tools required.
Free shipping on all orders
Four flexible silicone sealing ribs form a one-way valve. Water passes through freely under gravity. Showers, laundry discharge, and mop water all drain normally.
When flow stops, the ribs close to create a continuous mechanical seal that blocks gas, odor, and pests from coming back up.
Drop-in installation. No tools. No plumber. No connection to a water supply.

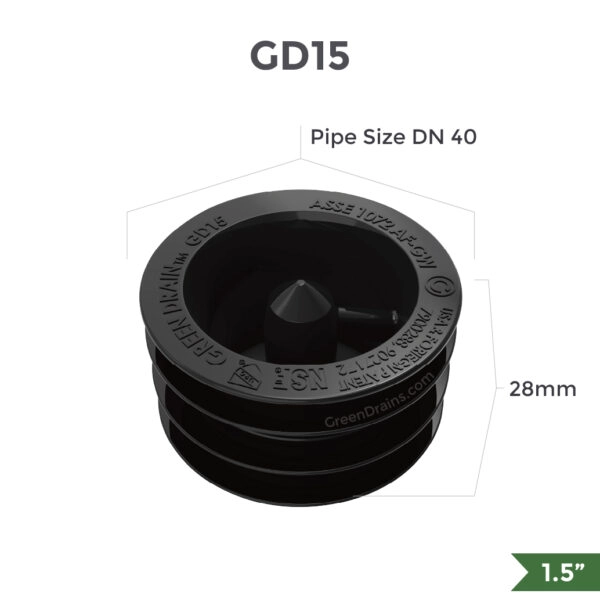

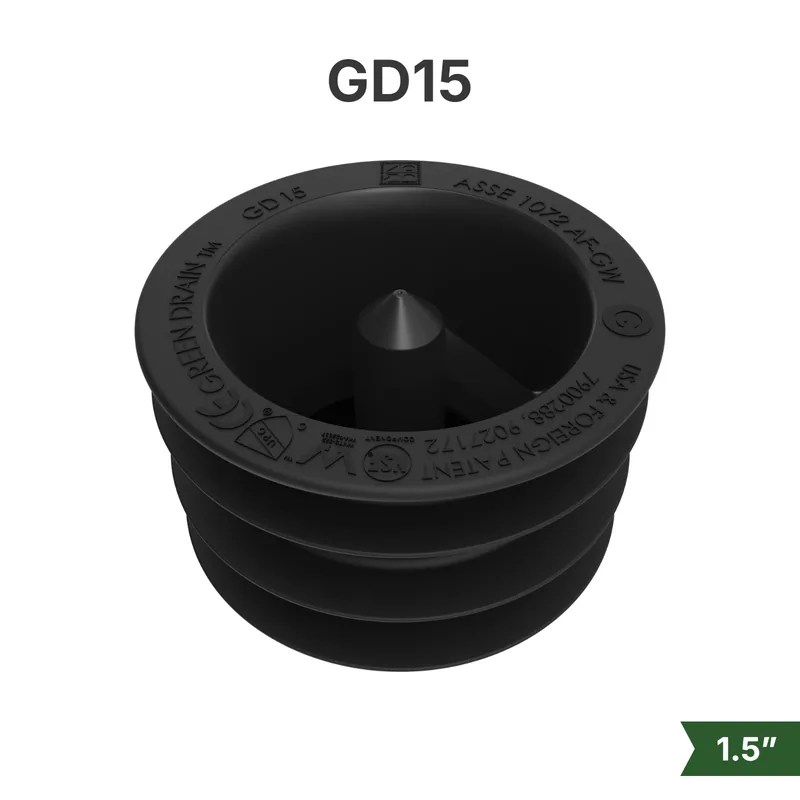

| Model | GD15 |
| Pipe Size | 1.5" (38 mm) / DN40 |
| Height | 28 mm |
| Housing Diameter (no gasket) | 36.46 mm (1.435") |
| Housing with Gasket | 48.77 mm (1.920") wide x 30.18 mm (1.188") |
| Housing Material | ABS Plastic |
| Valve Material | Silicone Rubber |
| Seal Material | Silicone Gasket |
| Flow Rate (Level C) | 6.40 GPM |
| Flow Rate (Level U) | 51.55 L/min |
| Patents | US 7,900,288 · US 9,027,172 |
Lift the existing drain grate or strainer from the drain body.
Place the Green Drain into the drain body or hub opening.
The silicone gasket creates a snug seal against the pipe walls.
Put the grate back. Done. Fully sealed in under a minute.
Handy accessories for Green Drain owners.
Purpose-built for quick, clean removal of any Green Drain. Simply hook and lift.
$6.95
Identify drain sizes in the field. Measure the inside diameter to find the right model.
$6.95
The 1.5" drain outlet is standard in residential showers, laundry rooms, and fixture drains. The GD15 fits anywhere a DN40 connection is present.
IAPMO File 9301
Trap seal performance standard
European Technical Assessment
Food Equipment Certified
Certificate RG-04
WM-022837 (DN80)
California Material Safety
>99.9% blockage of viral aerosols
Rapport 957187
Certified Testing Lab
Danish Plumbing Approval
Drop-in install. No tools. Works from day one.
