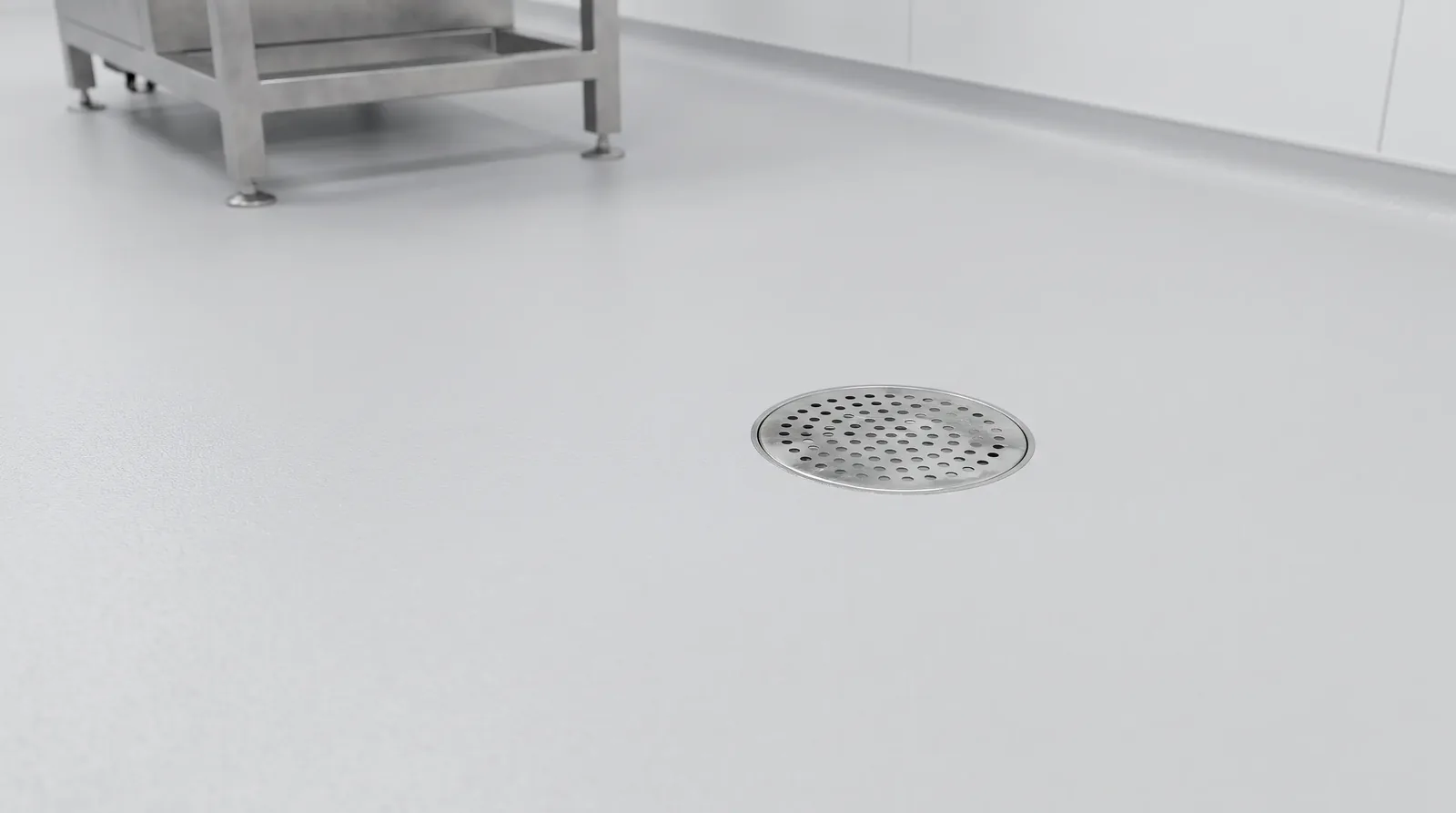

In food manufacturing, floor drains are everywhere. They handle washdown water, process runoff, condensation, and spills across production floors, cold storage areas, and sanitation zones. They are also one of the most overlooked contamination risks in the entire facility. A single unsealed drain can introduce pests, sewer gas, and pathogenic bacteria into areas where food is processed, packaged, and stored.
This article examines how floor drains intersect with HACCP principles, NSF/ANSI 2 certification requirements, and FDA and USDA expectations. For food safety and quality assurance professionals, drains are not just plumbing. They are critical control points.
Why floor drains are a food safety risk
Floor drains in food manufacturing plants connect the production environment directly to the building's wastewater system. That connection is managed by a P-trap: a U-shaped pipe bend that holds water to create a seal between the facility and the sewer. When that water seal is intact, the system works. When it fails, the drain becomes an open conduit.
Three categories of contamination risk emerge from failed drain seals:
Pathogen harborage and transmission
Drain biofilms are well-documented reservoirs for Listeria monocytogenes, the organism most feared in ready-to-eat food manufacturing. Listeria thrives in the wet, nutrient-rich environment inside drain pipes and can persist for months or years even with regular chemical sanitization. When a trap seal fails, airborne bacteria from the drain system can reach food contact surfaces, ingredients, and packaging areas.
Salmonella follows similar pathways. Environmental monitoring programs at food plants routinely detect Salmonella in and around floor drains, particularly in facilities processing raw proteins. The drain is not just a detection site. It is a potential amplification and dispersal point when the physical barrier between the drain and the production floor is compromised.
Pest entry
An unsealed floor drain is an open door to the sewer system. Cockroaches, drain flies, and other pests travel through sewer lines and emerge through drains with failed trap seals. In food manufacturing, a single pest sighting in a production area can trigger a hold on product, an investigation by the food safety team, and in severe cases, regulatory action or customer audit failures.
Pest management companies treat the symptoms: traps, baits, insecticides. But when the source is a drain with no physical seal, chemical treatments cannot address the root cause. There are no registered pesticides specifically approved for drain fly control. The only permanent solution is eliminating the entry point.
Sewer gas infiltration
Sewer gas contains hydrogen sulfide, methane, ammonia, and other volatile compounds. Beyond the obvious odor problem, sewer gas in a food production environment raises immediate questions during audits. Inspectors and auditors interpret sewer odor as evidence of a compromised sanitary barrier. Even if no product contamination has occurred, the odor alone can result in non-conformance findings.
HACCP principles and drain management
HACCP (Hazard Analysis and Critical Control Points) is the systematic framework used by food manufacturers worldwide to identify, evaluate, and control food safety hazards. While HACCP does not prescribe specific drain hardware, its principles directly implicate drain management as part of a comprehensive food safety program.
Principle 1: Hazard analysis
The first HACCP principle requires identification of all potential biological, chemical, and physical hazards. Floor drains qualify under biological hazards: they harbor pathogens, they attract pests, and they provide a direct pathway from the sewer system to the production environment. Any HACCP hazard analysis that does not include floor drains as a potential contamination source is incomplete.
Principle 2: Critical control points
While floor drains themselves are typically managed under prerequisite programs (GMPs) rather than as formal CCPs, the distinction matters less than the outcome. Whether classified as a CCP or a prerequisite, the drain must be controlled. HACCP International certification evaluates products and equipment specifically for their role in supporting food safety management systems. Green Drain holds this certification, confirming that the product has been independently assessed for use in HACCP-based environments.
Principles 3-7: Monitoring, corrective action, and verification
HACCP requires that controls be monitored, that corrective actions be taken when controls fail, and that the system be verified regularly. For drains, this translates to:
- Monitoring: Environmental swabbing of drains and surrounding areas for indicator organisms and target pathogens (Listeria spp., Salmonella)
- Corrective action: When monitoring detects a positive result, the response includes intensified cleaning, root cause investigation, and potentially a product hold or recall assessment
- Verification: Trending environmental monitoring data over time to confirm that drain management controls are effective
- Record-keeping: Documenting drain cleaning schedules, monitoring results, and any corrective actions taken
HACCP International certification is a mark recognized by food manufacturers and retailers globally. It confirms that a product has been scientifically assessed and found to support, rather than compromise, food safety management systems. Green Drain holds HACCP International certification, meaning the product has been evaluated specifically for use in food manufacturing environments.
NSF/ANSI 2 certification requirements
NSF/ANSI 2 (Food Equipment) is the standard that governs materials, design, fabrication, and construction of equipment used in food handling and processing. It is the benchmark that food manufacturers, retailers, and regulatory agencies rely on to determine whether equipment is suitable for use in food environments.
For a drain component to earn NSF/ANSI 2 certification, it must meet requirements in several areas:
Materials
All materials that contact food or food-contact surfaces must be food-safe, non-toxic, non-absorbent, and resistant to the chemicals used in food plant sanitation. Green Drain is manufactured from medical-grade silicone, a material that meets these requirements and is inherently resistant to bacterial growth, chemical degradation, and thermal cycling.
Cleanability
NSF/ANSI 2 requires that equipment be easily cleaned and sanitized. Surfaces must be smooth, free of crevices that can harbor bacteria, and accessible for inspection. The design cannot create dead spaces where product residue or microbial contamination can accumulate and resist cleaning.
Design and construction
The standard evaluates whether the product's design supports sanitary conditions or undermines them. For drain components, this means the device must not impede drainage, must not create conditions that promote microbial growth, and must function reliably under the conditions found in food manufacturing (temperature extremes, chemical exposure, high-pressure washdown).

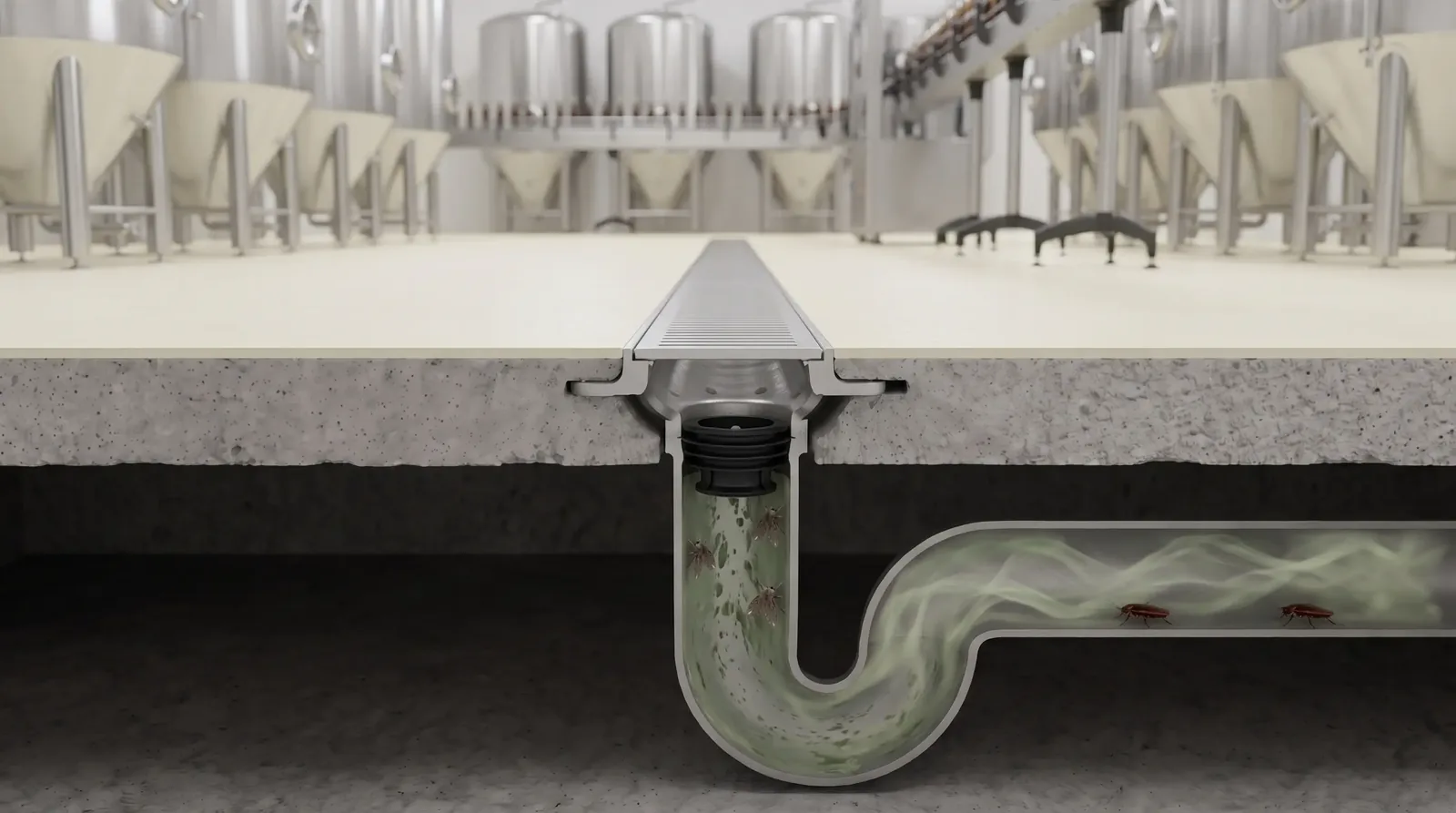

Green Drain installed beneath stainless steel grate in a food processing facility
~720 x 360px
FDA and USDA expectations for drain management
FDA requirements
The FDA's Current Good Manufacturing Practice (cGMP) regulations under 21 CFR Part 117 (formerly Part 110) establish baseline requirements for food facility sanitation. Relevant provisions include:
- Plumbing adequacy: Plumbing must be of adequate size and design, properly installed and maintained, to carry sufficient quantities of water and to properly convey sewage and liquid disposable waste (21 CFR 117.37)
- Backflow prevention: There must be no backflow from or cross-connection between piping systems that discharge waste and piping systems that carry water for food manufacturing or cleaning
- Floor drainage: Floors in areas where food is processed must provide adequate drainage to prevent standing water and insanitary conditions
- Pest exclusion: The facility must take effective measures to exclude pests from the manufacturing, processing, packing, and holding areas
The FDA's Preventive Controls for Human Food rule further requires a written food safety plan that includes a hazard analysis and preventive controls. For many facilities, environmental monitoring of drains is a key component of the pathogen preventive control, particularly for Listeria monocytogenes in ready-to-eat food operations.
USDA-FSIS requirements
Facilities under USDA-FSIS jurisdiction (meat, poultry, and egg processing) face additional scrutiny. FSIS inspectors are present daily in these facilities and can cite drain-related issues under sanitation performance standards (9 CFR 416). A sewer odor on the production floor, evidence of pest entry through drains, or an inadequately maintained drainage system can result in a Noncompliance Record (NR).
USDA-FSIS also requires that facilities operating under HACCP include environmental conditions, including drainage, in their prerequisite programs. The agency has issued guidance documents specifically addressing Listeria control in ready-to-eat products, with environmental monitoring of drains as a recommended practice.
Building a drain management program
For food safety and quality assurance teams, effective drain management requires coordination across sanitation, maintenance, pest control, and quality departments. The following framework addresses the key components:
Drain inventory and risk assessment
Map every floor drain in the facility. Classify each drain by proximity to open product, frequency of water flow, and current seal condition. Drains in production areas with exposed product are highest priority. Drains in dry storage, ingredient staging, and packaging areas follow.
Physical barriers
Install mechanical trap seals on all floor drains where evaporation, pest entry, or sewer gas infiltration is a risk. Waterless trap seals eliminate the dependency on water-based seals that fail during sanitation cycles, weekend shutdowns, and seasonal closures. Every drain that connects to the wastewater system should have a physical barrier that does not rely on standing water.
Environmental monitoring integration
Include drains in the facility's environmental monitoring program. Swab drain surfaces and surrounding floor areas on a defined schedule. Use zone-based monitoring: Zone 1 (food contact surfaces), Zone 2 (areas adjacent to food contact), Zone 3 (areas near food processing, including drains), and Zone 4 (remote areas). Drains are typically Zone 3, but a positive finding in a drain should trigger intensified monitoring in Zones 1 and 2.
Sanitation protocols
Establish drain-specific cleaning and sanitization procedures. Chemical sanitization of drain interiors should follow the facility's master sanitation schedule. However, chemical treatment alone does not prevent recontamination from the sewer system when the trap seal fails. Physical barriers and chemical sanitation work together, not as substitutes for each other.
Key principle: Chemical sanitization kills what is in the drain today. A physical barrier prevents recontamination from the sewer system tomorrow. Effective drain management requires both.
Audit readiness
Third-party audits (SQF, BRC, FSSC 22000) consistently examine drain conditions. Auditors look for evidence of pest activity around drains, sewer odor, drain hardware condition, and documentation of drain maintenance. Having certified drain components (NSF/ANSI 2, HACCP International) provides objective evidence that the facility has selected equipment evaluated for food safety applications.
Why waterless trap seals fit food manufacturing
Traditional drain management in food plants relies on a combination of manual flushing, chemical treatment, and trap primers. Each has limitations in the food manufacturing context:
- Manual flushing fails during weekends, holidays, and shutdown periods when drains receive no water flow
- Chemical treatments require reapplication and cannot prevent pest entry or sewer gas infiltration
- Trap primers add mechanical complexity, require maintenance, and consume water that adds to the facility's utility costs and wastewater volume
Green Drain's waterless trap seal addresses these limitations with a solution designed for the demands of food manufacturing. The medical-grade silicone valve is NSF/ANSI 2 certified, HACCP International certified, and installs in existing drain bodies in 30 seconds with no tools. It allows full washdown flow, resists the chemicals used in food plant sanitation, and creates a permanent physical barrier that never dries out.
For food and beverage manufacturing facilities, this means one less variable in a food safety program that already has thousands of them. View all available sizes or request a quote for your facility.
Frequently asked questions
What drain requirements does HACCP have?
HACCP requires food manufacturers to identify and control all potential contamination pathways in a facility. Floor drains are classified as potential harborage points for pathogens including Listeria monocytogenes and Salmonella. HACCP plans must include drain monitoring, cleaning schedules, and physical controls to prevent backflow contamination and pest entry through the drainage system.
Are waterless trap seals NSF certified?
Yes. Green Drain is certified to NSF/ANSI 2 (Food Equipment), which covers materials and design requirements for equipment used in food handling and processing environments. This certification confirms the device is made from food-safe materials, is cleanable, and does not harbor bacteria. Green Drain also holds HACCP International certification for use in food safety management systems.
How do food plants manage floor drains?
Food manufacturing plants manage floor drains through a combination of scheduled cleaning, environmental monitoring (swabbing drains for Listeria and other pathogens), chemical sanitization, and physical barriers. Best practice includes installing mechanical trap seals to prevent pest entry and sewer gas infiltration, maintaining drain traps to prevent dry-out, and including drains in the facility's environmental monitoring program.
What are the FDA requirements for floor drains?
The FDA's cGMP regulations under 21 CFR Part 117 require that food facilities maintain plumbing systems that do not constitute a source of contamination. Floor drains must provide adequate drainage, prevent backflow from sewage systems, and not create insanitary conditions. The FDA expects facilities to include drains in their environmental monitoring programs and preventive controls, particularly for Listeria in ready-to-eat food environments.
