Trap Primers vs. Waterless Trap Seals: Which Is Right for Your Building?

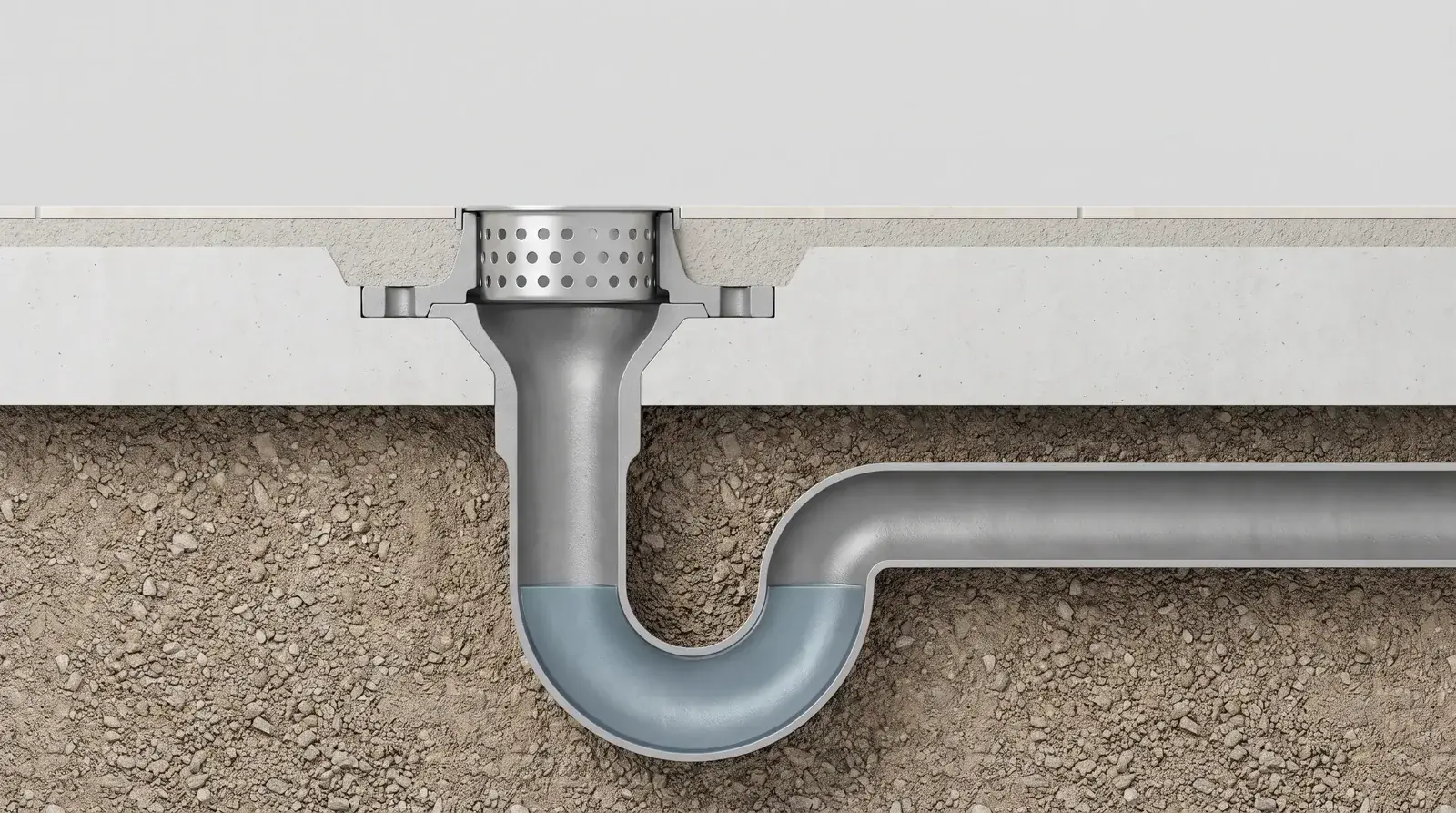

Every floor drain in a commercial building needs a functioning trap seal. When P-traps dry out, sewer gas, pests, and pathogens enter the building. For decades, trap primers were the default engineering solution. Today, waterless trap seals offer a fundamentally different approach. This article compares the two technologies head-to-head so facility managers, engineers, and building owners can make an informed decision.

The comparison matters because the wrong choice does not just cost money. It creates ongoing maintenance burden, wastes water, and can still leave buildings unprotected when the system fails.

What trap primers do and how they work

A trap primer is a plumbing device connected to the building's potable water supply. Its job is simple: periodically send a small amount of water to a floor drain's P-trap to replace water lost to evaporation. As long as the primer keeps the trap charged, the water seal holds and sewer gas stays in the sewer.

The concept has been around for decades, and trap primers are specified in plumbing codes as one acceptable method of maintaining trap seals in floor drains that do not receive regular water flow. But not all trap primers work the same way, and the differences in water consumption, reliability, and maintenance are significant.

Continuous flow trap primers

The oldest and simplest design. A continuous flow primer delivers a constant, small stream of water to the trap. There is no valve, no sensor, and no timer. Water flows 24 hours a day, 365 days a year, whether the trap needs it or not.

The result is enormous water waste. A single continuous flow trap primer operating at just one gallon per hour consumes 8,760 gallons per year. Many older installations run at higher flow rates, pushing annual consumption above 52,000 gallons per drain. In a building with 20 floor drains, that adds up to over one million gallons of potable water per year poured directly into the sewer.

Pressure drop trap primers

A pressure drop primer is connected to a nearby water supply line (typically a restroom or fixture group). When someone uses a faucet, toilet, or other fixture, the momentary pressure drop in the supply line triggers a valve that diverts a small amount of water to the floor drain trap.

This design is more water-efficient than continuous flow because it only delivers water when the adjacent fixtures are in use. However, it has a critical dependency: if the adjacent fixtures stop being used (vacant floor, closed wing, building shutdown), the primer stops delivering water. The trap dries out precisely when it is most vulnerable.

Typical water consumption for a pressure drop primer ranges from 1,500 to 3,000 gallons per year per drain, depending on fixture usage patterns.

Flush valve trap primers

These primers are integrated into flush valve assemblies on toilets and urinals. Each flush diverts a small amount of water to a nearby floor drain. Like pressure drop models, they depend on fixture usage. If the restroom is closed or the building is unoccupied, no flushes occur and no water reaches the trap.

Water consumption is similar to pressure drop models. The advantage is a simpler installation since the primer is built into existing flush hardware. The disadvantage is the same: it fails when the building goes quiet.

Electronic trap primers

Electronic primers use a solenoid valve controlled by a timer or sensor. At programmed intervals, the valve opens and delivers a measured amount of water to the trap. This is the most controlled approach, delivering water on a fixed schedule regardless of fixture usage.

Electronic primers consume less water than other types, typically 500 to 1,500 gallons per year per drain. But they introduce electrical requirements (wiring, controllers, power supply), electronic components that can fail, and a more complex installation. They also require battery backup or hardwired power to function during outages.

How waterless trap seals work

A waterless trap seal takes a completely different approach. Instead of continuously replenishing a water barrier that evaporates, it creates a mechanical barrier that cannot evaporate. There is no water to maintain, no valve to cycle, and no connection to the building's water supply.

Green Drain uses a one-way silicone valve that sits inside the drain body. When water flows down the drain (from mopping, cleaning, equipment discharge, or any other source), the valve opens and allows normal drainage. When the flow stops, the valve closes under its own weight and the weight of any remaining water. The closed valve creates a physical seal that blocks sewer gas, odors, drain flies, and other pests from traveling back up through the drain.

Because the seal is mechanical rather than liquid, it works whether the building is occupied or vacant, whether the drain has been used recently or not, and whether it is summer or winter. There is no evaporation timeline to manage.

Head-to-head comparison

The water cost problem

Water is not free. In many municipalities, water and sewer rates have increased by 50% or more over the past decade, and the trend is accelerating. When you calculate the cost of trap primers, you need to account for both the water supply charge and the sewer discharge charge, because every gallon that goes through a trap primer ends up in the sewer.

Consider a mid-size commercial building with 40 floor drains, each served by a pressure drop trap primer consuming 2,000 gallons per year. That is 80,000 gallons of potable water per year. At a combined water and sewer rate of $15 per 1,000 gallons (a moderate rate in most U.S. cities), the annual water cost is $1,200 for primer water alone. Over a 20-year building lifecycle, that is $24,000 in water costs for a system that still needs mechanical maintenance.

If the same building has continuous flow primers, the numbers get dramatically worse. Use our Water Savings Calculator to model the specific impact for your building. For a broader look at how trap primer water waste fits into the commercial building sustainability picture, including LEED and ESG reporting implications, see our article on water conservation in commercial buildings.

Maintenance and failure modes

Every mechanical system fails eventually. The question is how it fails, how quickly you know about it, and what it costs to fix.

How trap primers fail

Trap primers fail silently. When a valve sticks, a solenoid burns out, or mineral deposits block the water line, the primer stops delivering water. The trap begins to dry out. Nobody knows until someone smells sewer gas, finds drain flies, or, in a healthcare setting, detects a pathogen in a patient care area.

The most common trap primer failure modes include:

• Mineral deposit buildup in the water line or valve body, especially in hard-water regions
• Valve seat degradation from continuous cycling, leading to either stuck-open (wasted water) or stuck-closed (no water delivery) conditions
• Solenoid failure in electronic models, requiring full unit replacement
• Supply line leaks at connection points, which can cause water damage in walls and ceilings where primers are often installed
• Controller malfunction in electronic models, causing missed cycles or continuous operation

Identifying which trap primer has failed in a building with dozens of drains requires a systematic inspection of every unit. Many are installed in concealed locations (above ceilings, inside walls, in mechanical chases), making inspection time-consuming and disruptive.

How waterless trap seals fail

A waterless trap seal is a physical object sitting in the drain. If it fails (valve damage from chemical exposure, physical displacement during aggressive cleaning), the failure is visible. You can see whether the device is present and functioning with a quick visual check. There are no concealed components, no remote valves, and no electronic controllers to diagnose.

The silicone valve material used in Green Drain is rated for continuous exposure to cleaning chemicals, FOG (fats, oils, grease), and temperatures up to 300 degrees Fahrenheit. The valve is tested to over 2,500 open-close cycles under load. Under normal building conditions, a single unit lasts for years without replacement.

When trap primers still make sense

Trap primers are not always the wrong choice. There are situations where they are appropriate or required:

• New construction with primer infrastructure already specified in the plumbing design. Changing the specification late in the design process can be more expensive than installing the primers.
• Drains that require continuous water flow for process reasons (not just trap seal maintenance) may benefit from a combined approach.
• Jurisdictions with specific trap primer requirements in local amendments to the plumbing code. While Green Drain is code-compliant nationally, some local authorities having jurisdiction (AHJs) may have specific preferences.

Even in these cases, many engineers specify waterless trap seals as a backup to trap primers, providing a redundant seal that protects the building if the primer fails.

Total cost of ownership

The real comparison is not the upfront cost of the device. It is the total cost of ownership over the life of the building, including installation, water, maintenance, and replacement.

For a single floor drain over a 10-year period, the typical total cost breaks down as follows:

• Continuous flow trap primer: $200-$400 installation + $400-$4,000/year in water = $4,200 to $40,400 over 10 years, plus maintenance labor
• Pressure drop trap primer: $200-$400 installation + $50-$100/year in water + annual maintenance = $900 to $2,400 over 10 years
• Electronic trap primer: $400-$800 installation + $20-$60/year in water + annual maintenance + controller replacement = $1,200 to $3,400 over 10 years
• Waterless trap seal: One-time product purchase. No water. No scheduled maintenance. No ongoing cost.

Multiply by the number of floor drains in the building. A facility with 50 drains can spend $45,000 to $120,000 or more on trap primer systems over a decade. The same building can be fitted with waterless trap seals for a fraction of that cost, with no recurring expenses.

Making the decision

The choice between trap primers and waterless trap seals comes down to three questions:

1. Do you want a system that requires ongoing water, power, and maintenance? Trap primers are active systems. They need inputs to function. If any input fails, the seal fails.
2. Do you need protection during vacancy and low-occupancy periods? Pressure drop and flush valve primers stop working when the building goes quiet. Waterless seals do not care whether the building is occupied.
3. What is your tolerance for silent failure? Trap primers fail without warning. Waterless seals fail visibly, if they fail at all.

For most commercial buildings, the answer is straightforward. Waterless trap seals provide more reliable protection, at lower cost, with less complexity. They eliminate the single largest weakness of the P-trap system (evaporation) without introducing the mechanical complexity, water consumption, and maintenance burden of trap primers.

Explore Green Drain products for your building, use the Water Savings Calculator to quantify the difference for your specific facility, or learn how to build a drain preventive maintenance program that incorporates the right technology for your building.

Frequently asked questions

What is a trap primer?

A trap primer is a plumbing device that periodically sends small amounts of water to a floor drain's P-trap to prevent the water seal from evaporating. There are four main types: continuous flow, pressure drop, flush valve, and electronic. Each uses a different mechanism to deliver water, but all require a connection to the building's potable water supply.

How much water does a trap primer use?

Water consumption varies dramatically by type. Continuous flow trap primers can use over 52,000 gallons per year per drain. Pressure drop models typically consume 1,500 to 3,000 gallons annually. Electronic primers use 500 to 1,500 gallons per year. Waterless trap seals, by comparison, use zero water to maintain the seal.

Are waterless trap seals code compliant?

Yes. Green Drain waterless trap seals are cUPC listed and ASSE 1072-2020 certified, which means they meet the requirements of all major plumbing codes in the United States and Canada. They are accepted by plumbing authorities in all 50 states. See our certifications page for full documentation.

Which is cheaper long-term, trap primers or waterless seals?

Waterless trap seals are significantly cheaper over time. A trap primer has ongoing costs for water consumption, maintenance labor, and periodic replacement of mechanical components. Over a 10-year period, a single trap primer can cost $900 to $40,000 depending on the type. A waterless trap seal has a one-time purchase cost and requires no water, no power, and no scheduled maintenance.
