Every waterless trap seal on the market makes the same basic promise: block sewer gas without water. But the mechanism matters. The material matters. The engineering tolerances matter. This article explains exactly how Green Drain works, from the physics of the one-way valve to the material science behind its medical-grade silicone construction, and why those details determine whether a drain seal actually performs in the field.
If you have ever wondered what happens inside a Green Drain when water flows through it, when the flow stops, or when sewer gas pushes up from below, this is the technical breakdown.
The one-way valve principle
Green Drain operates on a simple mechanical principle: a flexible silicone membrane that opens in one direction and seals shut in the other. The device sits inside the drain body, below the grate. When water flows downward from mopping, cleaning, or equipment drainage, the silicone leaflets deflect open and allow water to pass through unrestricted. When the flow stops, the leaflets return to their closed position under their own elastic memory.
This creates a physical barrier between the building interior and the sewer system. Unlike a P-trap, which relies on a pool of water that can evaporate, the Green Drain seal is mechanical. It does not evaporate, it does not require replenishment, and it does not depend on regular water flow to maintain its function.
Showing silicone leaflets in open (water flowing) and closed (sealed) positions
~720 x 360px
Opening force: 32 grams
One of the most critical design parameters in a one-way drain valve is the opening force: how much pressure is required to push the valve open. If the opening force is too high, the valve resists water flow and can cause backups or slow drainage. If the opening force is too low, the valve may not seal reliably against sewer gas pressure from below.
Green Drain's silicone leaflets are engineered to open at just 32 grams of force. This is roughly the weight of six nickels resting on the valve surface. In practical terms, it means the valve opens under the slightest water flow, including condensation runoff from HVAC equipment and small cleaning spills. There is no scenario in normal building operation where the valve impedes drainage.
Why 32 grams matters: Some competing products use heavier spring mechanisms or rigid flaps that require significantly more force to open. This can cause water to pool above the drain during low-flow conditions. Green Drain's ultra-low opening force ensures the valve never becomes a bottleneck, even during passive drainage events.
The seal in the other direction
While the valve opens easily from above, it resists pressure from below. When sewer gas pushes upward against the closed leaflets, the gas pressure actually forces the leaflets tighter together, improving the seal. This is the same principle used in check valves throughout plumbing and medical device engineering: the greater the backpressure, the tighter the closure.
This bidirectional asymmetry, easy to open from above and self-reinforcing from below, is what makes the one-way valve effective as a permanent gas barrier.
Flow rate: 73 GPM
A drain seal that blocks gas but restricts water flow is not a viable solution for commercial buildings. Floor drains in commercial kitchens, healthcare facilities, and industrial spaces routinely handle high-volume water events: equipment washdowns, floor cleaning, emergency water discharge.
Green Drain is tested to a flow rate of 73 gallons per minute (GPM) for the 4-inch model (GD4). This exceeds the drainage capacity of most commercial floor drain bodies. The testing is conducted in accordance with ASME A112.6.3 and ASSE 1072 standards, the same protocols used to certify the drain bodies themselves.
Flow rates for other sizes scale proportionally. The GD2 (2-inch) handles the flow requirements of smaller fixture drains, while the GD6 (6-inch) is designed for large-format industrial and commercial drains. Full flow data for all sizes is available on the specifications page.
Material: medical-grade silicone
The valve leaflets are the component that makes or breaks a waterless trap seal. They must remain flexible across a wide temperature range, resist chemical degradation from cleaning products and sewer gases, prevent biological growth, and maintain their elastic memory over thousands of cycles. Green Drain uses medical-grade silicone for the valve leaflets, a deliberate material choice with specific engineering reasons.
Why silicone, not rubber
Natural rubber and synthetic rubbers (EPDM, neoprene) are common in plumbing applications. They are cheaper than silicone. But they have significant disadvantages in a drain environment:
- Chemical resistance: Rubber degrades when exposed to hydrogen sulfide, ammonia, and the organic acids present in sewer gas. Silicone is inert to these compounds.
- Temperature range: Medical-grade silicone maintains its flexibility from -65 degrees F to +400 degrees F. Rubber becomes brittle at low temperatures and softens at high temperatures.
- Elastic memory: Silicone returns to its original shape after deformation with virtually no compression set over time. Rubber develops permanent deformation, meaning the seal loosens progressively.
- Biological resistance: Silicone does not support microbial growth. Rubber can harbor bacteria and biofilm in its porous surface structure.
Why medical-grade specifically
Medical-grade silicone is manufactured under stricter controls than industrial or food-grade silicone. It is produced in cleanroom environments, tested for biocompatibility, and certified for long-term contact with biological systems. This is the same class of material used in surgical implants, catheters, and prosthetic devices.
For a drain seal, the practical benefit is consistency. Every batch of medical-grade silicone meets the same hardness, tensile strength, and elongation specifications. There are no filler materials, no recycled content, and no batch-to-batch variation that could affect valve performance. This matters because the valve must maintain its 32-gram opening force and its sealing integrity for years without adjustment or replacement.
Durability: 2,500+ cycle testing
Green Drain's silicone valve is tested through more than 2,500 open-close cycles as part of the product testing program. Each cycle simulates a full water-flow event: the valve opens under flow, the flow stops, and the valve returns to its sealed position.
At the conclusion of cycle testing, the valve is retested for seal integrity. The opening force is remeasured. The flow rate is reverified. The gas-blocking performance is confirmed. The results show no measurable degradation in any performance parameter after 2,500+ cycles.
In a typical commercial building, a floor drain might experience 2 to 5 flow events per week from cleaning and incidental water. At that rate, 2,500 cycles represents approximately 10 to 25 years of service. In drains with less frequent use, the service life extends further.
Compare to trap primers: Mechanical trap primers use solenoid valves, pressure regulators, and distribution tubing that typically require maintenance or replacement every 3 to 5 years. Electronic trap primers add circuit boards, sensors, and power connections to the failure equation. Green Drain has zero mechanical or electronic components that can fail.
How it blocks gas, odors, and pests
The sealed valve creates three distinct barriers:
Gas and odor barrier
When the silicone leaflets are in their closed position, they form an airtight seal across the drain opening. Sewer gases, including hydrogen sulfide, methane, and ammonia, cannot pass through the closed valve. Independent testing confirms that Green Drain meets the gas-blocking requirements of ASSE 1072-2020, the industry standard for floor drain trap seal devices.
Pest barrier
The closed valve also creates a physical barrier against pests. Drain flies, cockroaches, mosquitoes, and other insects that travel through sewer lines cannot pass through the sealed silicone leaflets. Unlike chemical pest treatments that must be reapplied and may not be permitted in certain facilities, the physical barrier is continuous and passive.
Backflow resistance
While Green Drain is not a backflow prevention device (those are regulated separately under plumbing codes), the one-way valve does provide resistance against minor backflow events. During temporary surcharging of the sewer system, the valve remains closed and prevents sewer water from backing up through the drain. For facilities that experience occasional backflow, this provides an additional layer of protection beyond the gas seal.
The 30-second installation

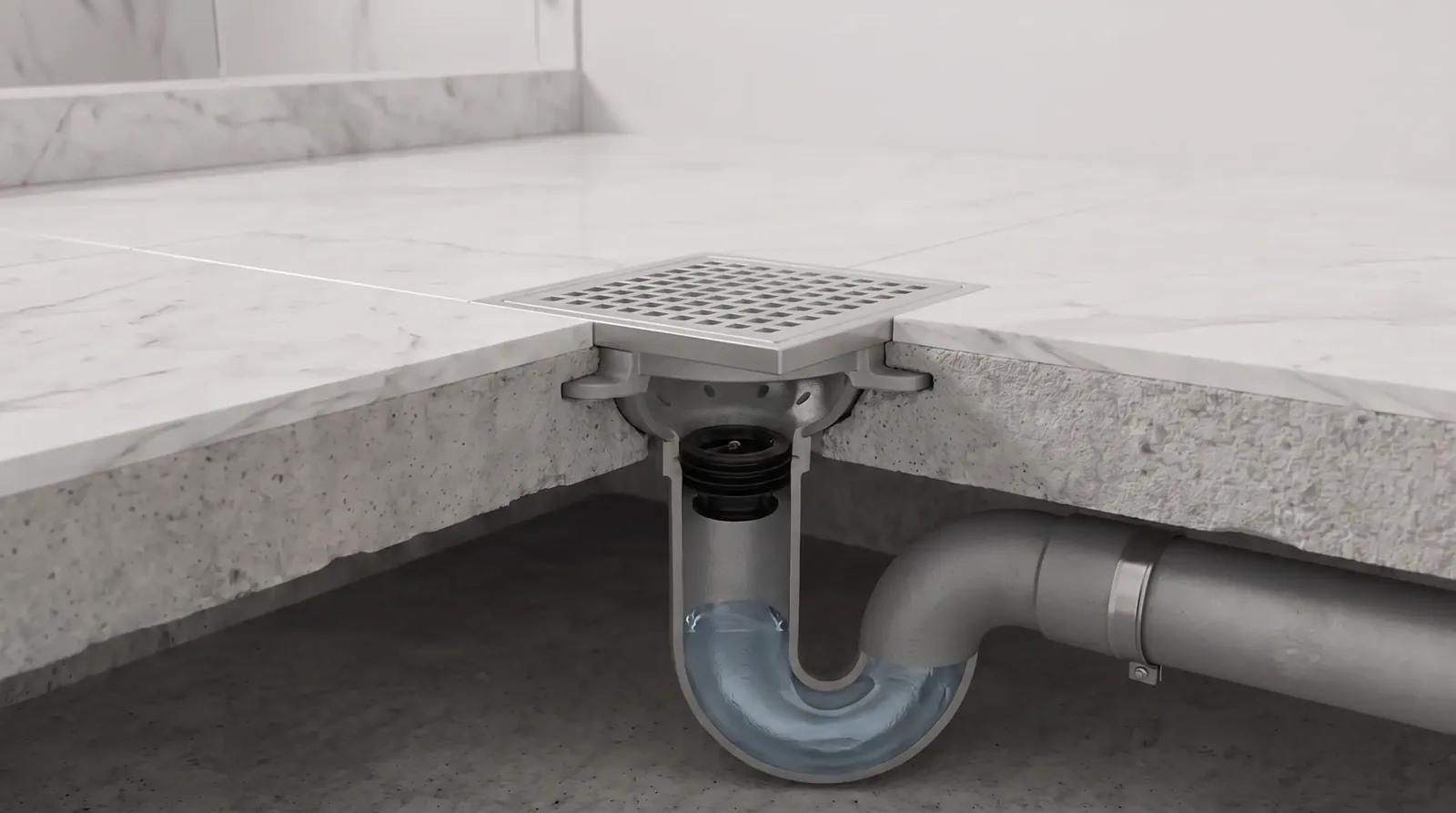

Green Drain installs by dropping the device into the existing floor drain body after removing the grate. There are no tools required, no plumbing modifications, no adhesives, and no threading. The device is sized to fit standard drain bodies, and the slight compression fit of the outer housing holds it in position.
The installation process is three steps:
- Remove the drain grate. Lift or unscrew the existing floor drain grate.
- Drop in the Green Drain. Insert the device into the drain body with the valve side facing down. It seats into the drain opening by gravity and friction fit.
- Replace the grate. Set the grate back on top. Installation is complete.
This simplicity has a direct operational impact. A single facility technician can install Green Drains across an entire building in a single shift. There is no need to schedule plumbing contractors, shut down water systems, or take spaces offline. For hospitals, schools, and hotels where drain access time is limited, the 30-second installation eliminates the logistical barriers to comprehensive drain sealing.
Certifications and standards compliance
Green Drain holds 13 certifications from independent testing organizations and regulatory bodies. The primary certifications relevant to its function as a trap seal device include:
- cUPC listed (IAPMO) as a trap seal device for use in the United States and Canada
- ASSE 1072-2020 certified for performance as a waterless trap seal
- NSF/ANSI 2 certified for food equipment, allowing installation in food-service environments
- HACCP International certified for use in food safety management systems
- NSF/ANSI 61 certified for drinking water system components
These certifications are not self-declared. Each requires independent third-party testing to published standards, with ongoing surveillance audits to maintain the listing. Full certification documentation is available on the certifications page and in the specification submittals.
Sizing and compatibility
Green Drain is manufactured in four standard sizes to fit the most common commercial and institutional drain bodies:
- GD2 - 2-inch, for smaller fixture drains and condensate lines
- GD3 - 3-inch, for standard restroom and corridor floor drains
- GD4 - 4-inch, for commercial kitchen, healthcare, and industrial floor drains
- GD6 - 6-inch, for large-format industrial and trench drains
The sizes correspond to the internal diameter of the drain body, not the pipe size or the grate size. Sizing guidance for specific drain manufacturers and models is available from the Green Drain technical team. Request a quote with your drain specifications for sizing confirmation.
Frequently asked questions
How does Green Drain work?
Green Drain uses a one-way silicone valve that sits inside the drain body. When water flows down, the valve leaflets open with just 32 grams of force. When flow stops, the leaflets close under their own elastic memory, creating a physical seal that blocks sewer gas, odors, and pests from traveling back up through the drain.
What is Green Drain made of?
The sealing leaflets are 100% medical-grade silicone, the same class of material used in surgical implants and food-contact applications. The valve body is constructed from durable ABS or stainless steel depending on the model. Medical-grade silicone is chosen for its chemical resistance, temperature range, elastic memory, and biological inertness.
How long does Green Drain last?
The silicone valve is tested to over 2,500 open-close cycles without degradation. Under normal building conditions with typical water flow (2-5 events per week), this represents 10 to 25 years of service. The medical-grade silicone does not dry out, crack, or lose its elastic memory over time.
Does Green Drain restrict water flow?
No. The 4-inch model (GD4) is tested to 73 gallons per minute, which exceeds the drainage capacity of most commercial floor drain bodies. The silicone valve opens fully under water pressure and creates no bottleneck. Testing is conducted per ASME A112.6.3 and ASSE 1072 standards.
